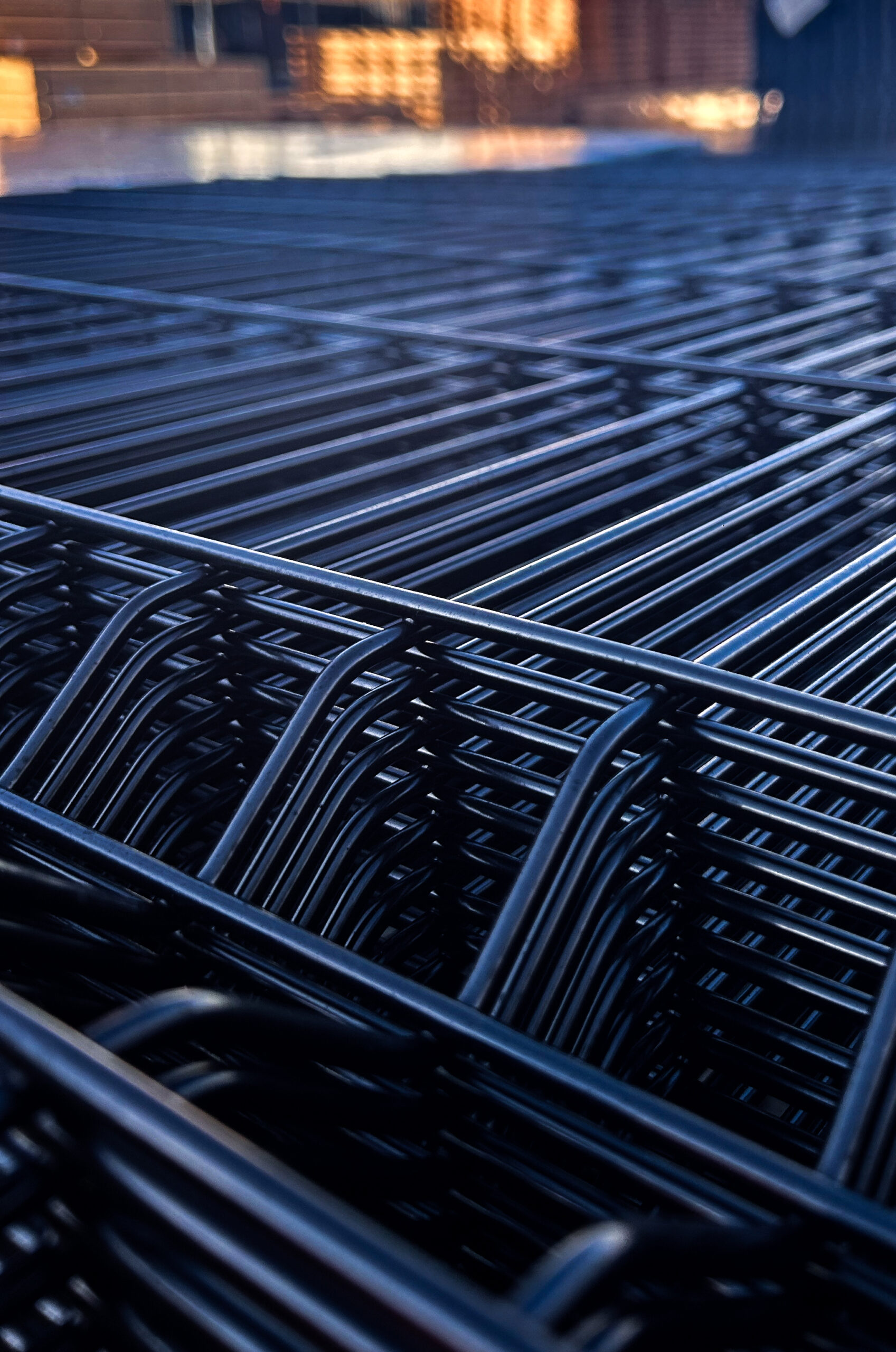

Our Stripe 3D Pressed Beam Panels are a smart, robust choice for delineating boundaries in public walkways, parks, and shared spaces. Engineered for strength and style, the panels feature pressed V-beams and a distinctive striped mesh pattern that balances high rigidity with excellent visibility. The alternating narrow and broad apertures create a clean, contemporary look—perfect for public-facing environments where both safety and aesthetics matter. Whether used for guiding foot traffic, sectioning off landscaped areas, or marking perimeters, these panels provide a long-lasting, low-maintenance solution backed by quality British manufacturing.
| Panel Dimensions (mm) | Mesh Configuration (mm) | Wire diameter (mm) | Approx Panel Weight (Kg) | Pallet Quantities |
|---|---|---|---|---|
| 1000 x 3000 | 2 | 3.90 vertical, 4.50 horizontal | 16.2 | 50 |
| 1200 x 3000 | 2 | 3.90 vertical, 4.50 horizontal | 18.8 | 50 |
| 1800 x 3000 | 3 | 3.90 vertical, 4.50 horizontal | 25.9 | 45 |
| 2000 x 3000 | 3 or 4 | 3.90 vertical, 4.50 horizontal | 28.5 | 40 |
| 2400 x 3000 | 4 | 3.90 vertical, 4.50 horizontal | 33.5 | 35 |
| 3000 x 3000 | 4 | 3.90 vertical, 4.50 horizontal | 41.4 | 25 |
| 1000 x 3000 | 2 | 3.90 vertical, 5.50 horizontal | 18.7 | 50 |
| 1200 x 3000 | 2 | 3.90 vertical, 5.50 horizontal | 21.4 | 50 |
| 1800 x 3000 | 3 | 3.90 vertical, 5.50 horizontal | 28.9 | 45 |
| 2000 x 3000 | 3 or 4 | 3.90 vertical, 5.50 horizontal | 31.6 | 40 |
| 2400 x 3000 | 4 | 3.90 vertical, 5.50 horizontal | 37.0 | 35 |
| 3000 x 3000 | 4 | 3.90 vertical, 5.50 horizontal | 45.7 | 25 |
| Panel Dimensions (mm) | Mesh Configuration (mm) | Wire diameter (mm) | Approx Panel Weight (Kg) | Pallet Quantities |
|---|
| Mesh Aperture & Wire Gauge |
4’ x 8’ 1220mm x 2440mm |
6’ x 12’ 1830mm x 3600mm |
6’ x 4’ 1830mm x 1220mm |
6’ x 3’ 1830mm x 915mm |
7’ x 12’ 2140mm x 3600mm |
Approx. Metric Equivalent (mm)* |
|---|
| Wire Diameter (mm) | 76.2mm x 76.2mm | 50mm x 50mm * | 50mm x 100mm * |
|---|
Panels can be subsequently pre-treated and Polyester Powder Coated with RAL colours of your choice.

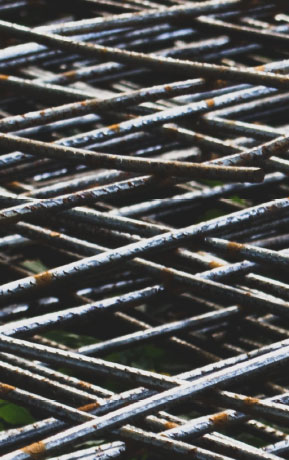

Pre-Galvanised – Coating refers to the process of applying a layer of zinc to steel before it is fabricated into its final product. This is done to protect the metal from rust and corrosion.
Polyester Powder Coating – This type of coating is known for its resistance to wear, chemicals, and weathering, making it suitable for a variety of outdoor and industrial applications. Polyester powder coatings are available in a wide range of colours and finishes.
For complex or unique projects that require a bespoke approach, our team of experts have the knowledge and understanding to deliver the outcomes you need. Once we understand your project and detailed requirements, we’ll design a tailor-made and budget-conscious solution that delivers on every level.
From large-scale, multi-site, multi-product projects to small but unique briefs, our teams will bring everything you need to ensure a safe, compliant and cost-effective system.
From our in-house manufacturing facility in the UK we can produce bespoke panels that are tailor made to fit your project. Whatever your budget and timeline, we can be trusted to deliver.
